Overview

Basic Info.

Model NO.	Sanitary 3 way diaphragm valve
Actuator	Pneumatic
Connection	Clamp Diaphragm Valve
Material	Stainless Steel
Structure	Through Way Diaphragm Valve
Pressure	Ordinary Pressure
Flow Direction	Bidirectional
Function	Pneumatic Valve
Usage	Drain, Flow Control
Standard	DIN, ANSI, ISO,3A
Item	Sanitary 3 Way Diaphragm Valve
Size	1/2"-4"
Grade	SS316L
Max Temperature	-20ºC-120ºC
Max Pressure	10bar
FDA Approved	Yes
Inside	Ra 0.4
Seal	Silicone, EPDM, FPM, PTFE
Transport Package	Carton
Specification	DN8-DN100
Trademark	Sanying
Origin	China
HS Code	8481804090
Production Capacity	200000PCS/Year

Packaging & Delivery

Package Size26.00cm * 26.00cm * 20.00cm Package Gross Weight1.500kg

Product Description

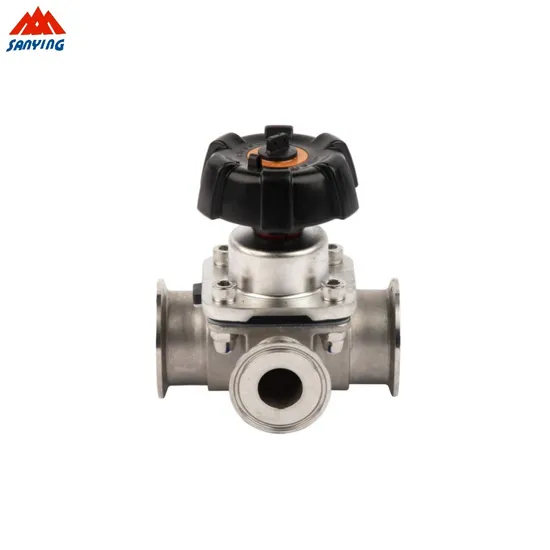

T - type Three Diaphragm Valve (SMS)

1. Are you a trading company or factory?
We are a manufacturer factory and we also have our own exporting license.

2. Do you have certificate?
Yes, ISO, FDA,SGS certificate. We also have some patents in design(Such as 3A Certificate which is similar as BPE/ASME certificate).

3.Do you offer customization?
Yes. We provide tailored solutions including:
- Custom dimensions (e.g., flange face-to-face lengths as per DIN/ISO).
- Material upgrades (e.g., Hastelloy body for highly corrosive media).
- Laser-marked logos/batch numbers for traceability

4.Why choose your valves over competitors?
Our valves are specifically designed for pharmaceutical applications with zero dead space(per EHEDG guidelines), FDA-compliant EPDM membranes, and full traceability from raw material to delivery. 90% of clients report reduced contamination risks post-installation

5.How do you ensure zero dead legs in valve design?
Our patented "Radius-Seal" diaphragm technology reduces crevices by 80% compared to traditional designs. View our 3D sectional drawings for details

6. How do you control the quality?
In quality control, the most important is to avoid material mixing.
In our factory, 3 spectro PMI and MTC machines are used in raw material warehouse, production plant, dispatch plant.
Pressure inspecting machine, PMI and MT machines, RA roughness spector, hardness testing machine...All machines help in inspection.
2 staff inspect during production in different sections
5 staff inspect the finished productions to avoid shortage, poor quality, mixing chemical...

7.Can you provide material traceability documentation?
Yes. Each valve comes with a Material Traceability Report (MTR)/Material Testing Certificate(MTC) including melt batch numbers and heat treatment records

8. If there is any quality problem, how do you solve it?
We are very proud that we never make one customer leave us. We are online 24 hours (Response rate >95%)and then the clients can contact with us full time for sloving well with some quality problem.

9. How long is your delivery time?
For normal products in 7-10 days; For bulk order, in 15-25 days. It depends.

10. Warranty time?
13 monthes warranty for all of our stainless steel products. Gaskets or the easy broken/wear parts are not included due to the different application for customers.

Product Description

Size	A	B	C	H	K
DN15	72	12.7	6	68	32
DN20	108	19.05	6	105	65
DN25/32	126	25.4/32	6	120	81
DN40	140	38.1	6	140	104
DN50	193	50.8	6	150	114
DN65	190	63.5	6	150	114
