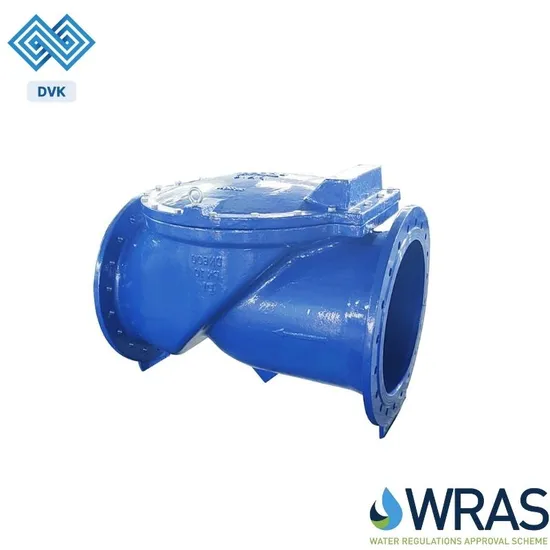

Manufacturer Ductile Iron Pn16 Flange End Soft Seat Resilient Seated Rubber Flap Flexible Disc Type Swing Check Valve

Manufacturer Ductile Iron Pn16 Flange End Soft Seat Resilient Seated Rubber Flap Flexible Disc Type Swing Check Valve

Overview Package Size100.00cm * 100.00cm * 100.00cm Package Gross Weight100.000kg Features and Benefits: * PN10 valves a

Send your inquiry

DESCRIPTION

  • Overview
  • Product Description
  • Why Choose Us
  • Factory Overview
  • Packaging & Shipping
  • Certifications
  • FAQ
Overview
Basic Info.
Connection Form Flange
Structure Swing
Pressure Ordinary Pressure
Function Ddcv Double Lobe, Nrvr Silence, Sfcv Rubber Lobe, Nrvz Silence, Nrvg Silence
Sealing Form Gland Packings Globe Valve
Flow Direction Unidirection
Standard JIS/ANSI/GB/DIN
Application Industrial Usage, Water Industrial Usage, Household Usage
Size DN50 - DN250(2′′ - 10′′)
Nominal Pressure Pn 16
Temperature Range 0°c ~ 80°c
Suitable for Water and Neutral Liquids
Connection Standard BS En1092-2
Face to Face Standard BS En558-1 Basic
Pressure Test Standard BS En12266-1, Ap
Transport Package Carton and Pallets
Trademark OEM
Origin China
HS Code 8481804090
Production Capacity 50000/Years
Packaging & Delivery
Package Size100.00cm * 100.00cm * 100.00cm Package Gross Weight100.000kg
Product Description

Features and Benefits:

* PN10 valves are in products range, for further details please contact our sales team.

Materials Specifications:


Manufacturer Ductile Iron Pn16 Flange End Soft Seat Resilient Seated Rubber Flap Flexible Disc Type Swing Check Valve

Manufacturer Ductile Iron Pn16 Flange End Soft Seat Resilient Seated Rubber Flap Flexible Disc Type Swing Check Valve

Manufacturer Ductile Iron Pn16 Flange End Soft Seat Resilient Seated Rubber Flap Flexible Disc Type Swing Check Valve


Manufacturer Ductile Iron Pn16 Flange End Soft Seat Resilient Seated Rubber Flap Flexible Disc Type Swing Check Valve

Are you a manufacturer or trading company?
DVK Valve is a specialized valve manufacturer, backed by a skilled and experienced R&D team.

Are you make OEM or ODM product?
Yes, if QTY attractive enough, we can create new mould for you, make bodies casting with your logo and your nameplate; if QTY not attractive enough, will be only with your nameplates or labels.

What kinds of valve can you supply?
We can supply butterfly valve, ball valve, check valve, gate valve, control valve, brass valve, bronze valve, strainer, valve fittings and so on.

How long is your delivery time?
General speaking, we have some stock for regular products, it is 1~2 weeks if the goods are in stock; if not in stock will be 4~8 weeks, depends on quantity.

What's the package and how do you ship the goods?
We typically use seaworthy plywood cases for packaging. Shipping is usually done by sea, other shipping methods can also be arranged. Please contact us if you require a different shipping route.

Can you provide the relevant documentation and certificates?
Yes, we can provide the necessary documentation and certificates, including the ISO9001,ISO24001, ISO45001, CE, BV, ABS, SIRIM, TUV-SUD etc. We can also provide the Test Report, Certificate of Material Analysis, Certificate of Origin, and other export documents if required.

Do you provide free samples?
If samples available in stock, yes, we could offer the free sample to you, but the air cost or courier cost will be on your account.

What are your payment terms?
Order value less than 2000USD, 100% in advance. Order value more than 2000USD, 30% T/T in advance, balance before shipment. L/C available as well.

Manufacturer Ductile Iron Pn16 Flange End Soft Seat Resilient Seated Rubber Flap Flexible Disc Type Swing Check Valve

Product Description

  • The spring load design, reduces the water hammer, no
  • noise.
  • Axial flow nozzle design, short stroke, quick close to the
  • seat.
  • High quality spring, avoid the water hammer to damage the pipeline.
  • Can be installed in anyposition, including vertical with flow up or down.
  • Resilient seated sealing, zero leakage.
  • Electrostatically applied Akzo Nobel epoxy powder internally and externally.

NO Size DN L D D1 n- d Weight (kg) Europe Code Other Code
28131270001 2″ 50 203 165 125 4-19 11.0 C0050CFDMN10DE C0050CFDMN10DO
28131280001 21/2″ 65 216 185 145 4-19 12.2 C0065CFDMN10DE C0065CFDMN10DO
28131281001 3″ 80 241 200 160 8-19 15.0 C0080CFDMN10DE C0080CFDMN10DO
28131282001 4″ 100 292 220 180 8-19 20.0 C0100CFDMN10DE C0100CFDMN10DO
28131290001 5″ 125 292 250 210 8-19 25.7 C0125CFDMN10DE C0125CFDMN10DO
28131291001 6″ 150 356 285 240 8-23 39.7 C0150CFDMN10DE C0150CFDMN10DO
28131292002 8″ 200 495 340 295 8-23 74.0 C0200CFDMN10DE C0200CFDMN10DO
28131293002 10″ 250 622 405 355 12-28 102.3 C0250CFDMN10DE C0250CFDMN10DO
28131294002 12″ 300 698 460 410 12-28 149.2 C0300CFDMN10DE C0300CFDMN10DO
28131296002 16″ 400 914 580 525 16-31 270.5 C0400CFDMN10DE C0400CFDMN10DO
No Component Materia
1 Body Ductile Iron JS1040
2 Cone Ductile Iron JS1040
3 Disc Steel + Nylon +EPDM Vulcanized
4 Sealing Ring EPDM
